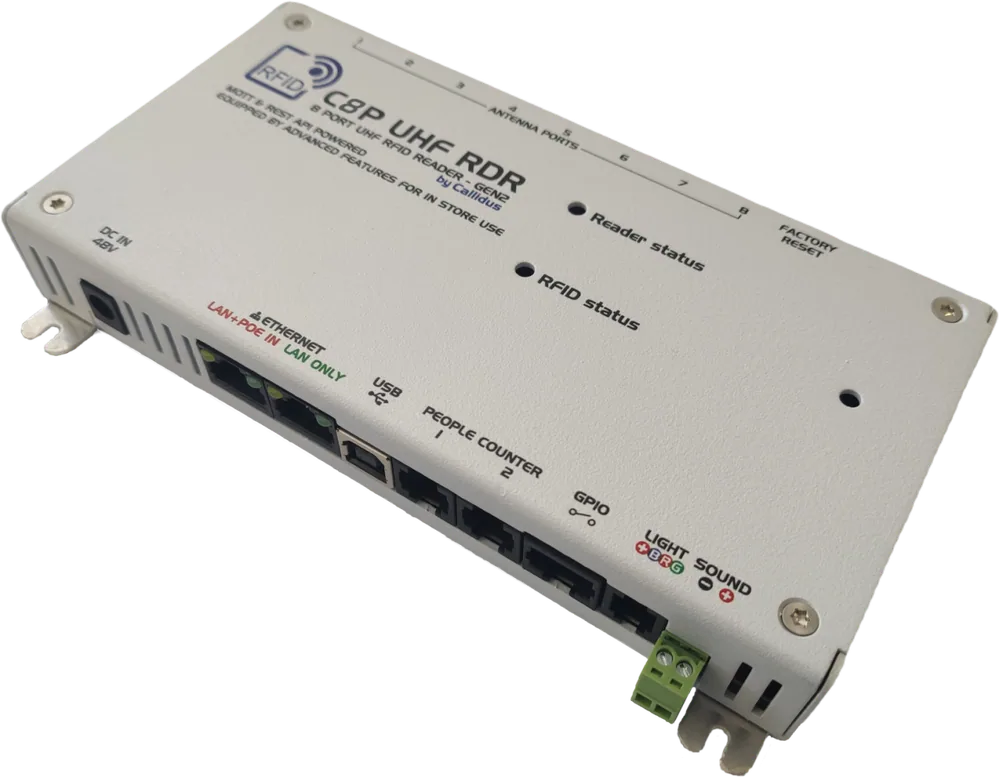

8-Port UHF RFID Reader Gen2

Reader for up to eight UHF RFID antennas, powered over Ethernet, reading up to 750 tags per second.

Model: 8-Port UHF RFID Reader Gen2
Availability: Confirmed on quotation

Overview

About the 8-Port UHF RFID Reader Gen2

The unit that reads, counts and edits UHF RFID tags from up to eight antennas. It is powered over Ethernet, has people-counting and alarm connections, and can be controlled through a web page or by your software. It can sit inside some pedestals or be mounted separately. USTS can design the antenna layout and set it up.

Key characteristics

TechnologyUHF RFID Gen2 (865-868 MHz EU / 902-928 MHz US)
Antenna ports8 x SMA female
PowerPoE 802.3af or 48V adaptor, 12W max
Reading speedUp to 750 tags per second
SoftwareWeb page and REST API
Dimensions8.9 x 17.5 x 2.6 cm

Typical applications

Shop entrances
Inventory counting
People counting
Retail integration

Specifications

Technical details

Only confirmed values are listed. Model-specific datasheets and remaining specifications are provided with the quotation.

8-Port UHF RFID Reader Gen2 specifications
Brand	Callidus EAS & RFID
Model	8-Port UHF RFID Reader Gen2
Category	RFID Readers & Antennas
Technology	UHF RFID Gen2 (865-868 MHz EU / 902-928 MHz US)
Antenna ports	8 x SMA female
Power	PoE 802.3af or 48V adaptor, 12W max
Reading speed	Up to 750 tags per second
Software	Web page and REST API
Dimensions	8.9 x 17.5 x 2.6 cm

Services

Installation and related solutions

EAS & RFID Retail SecurityRetail anti-theft gates, AM/RF EAS systems, tags, labels, deactivation, RFID readers and smart store workflows.

Brand

Callidus EAS & RFID

For Callidus EAS and RFID projects, USTS plans around retail entrance surveys, AM/RF anti-theft antenna placement, hard tag and label workflows, deactivation counters, RFID reader zones and store staff handover.

Callidus EAS & RFID page
